Industrial Spin Dryer

Filter machine arameter table

Model Tank volume Cartridge L*W*H Weight Inlet/outlet diameter
101 0.2m³ 10″‌1Core 405*275*800mm 13KG 25*25 (3/4″)
201 0.4m³ 20″‌1Core 405*275*1040mm 17KG 25*25 (3/4″)
104 0.6m³ 10″‌4Core 405*350*860mm 26KG 32*32 (1″)
204 0.8m³ 20″‌4Core 405*350*1040mm 28KG 32*32 (1″)
206 1.2m³ 20″‌6Core 680*400*1460mm 70KG 50*50 (1.5″)
208 1.5~3m³ 20″‌8Core 680*400*1460mm 81KG 50*50 (1.5″)
2012 2.5~4m³ 20″‌12Core 680*455*1490mm 97KG 50*50 (1.5″)
2018 4.0~6.5m³ 20″‌18Core 680*540*1490mm 117KG 60*60 (2.0″)
3018 6.5~7.5m³ 30″‌18Core 680*540*1760mm 125KG 60*60 (2.0″)

Dehydration and Drying Machine
Recirculating hot air quick spin dry
Large capacity | drying & heating | all-copper motor

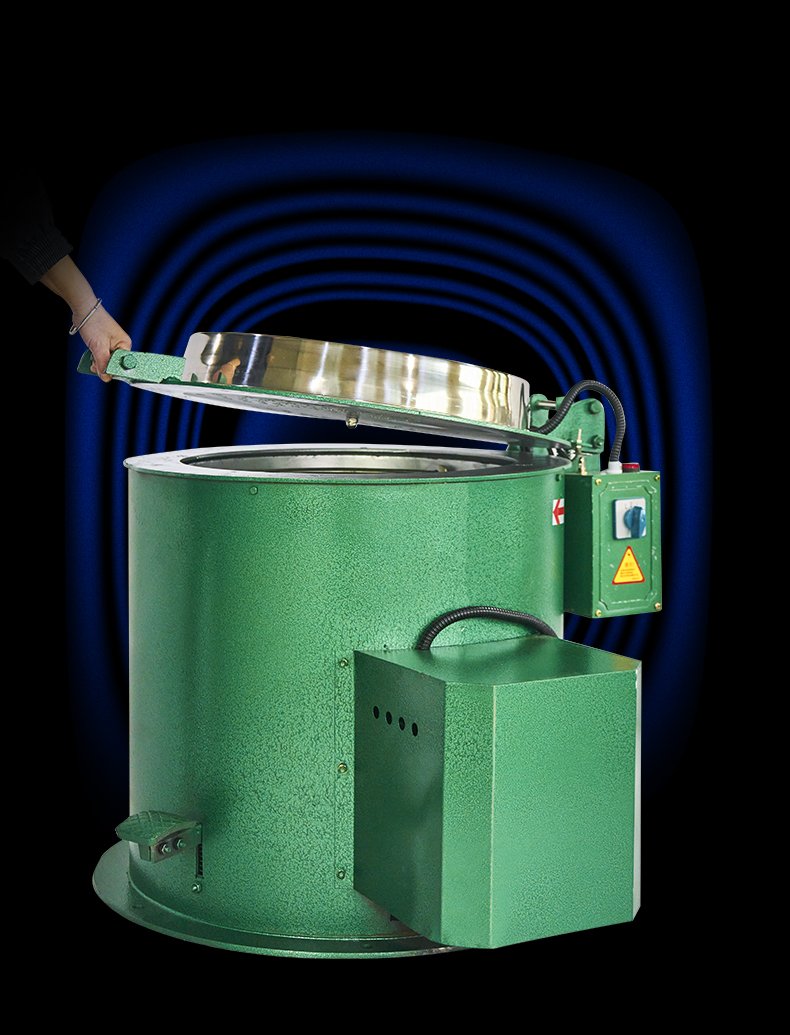

  Dehydration and Drying Machine

Open lid to stop, Close lid to start


All-copper motor | Stainless steel basket | Basket is removable
Heat and dry De-oiling and dewatering Many models

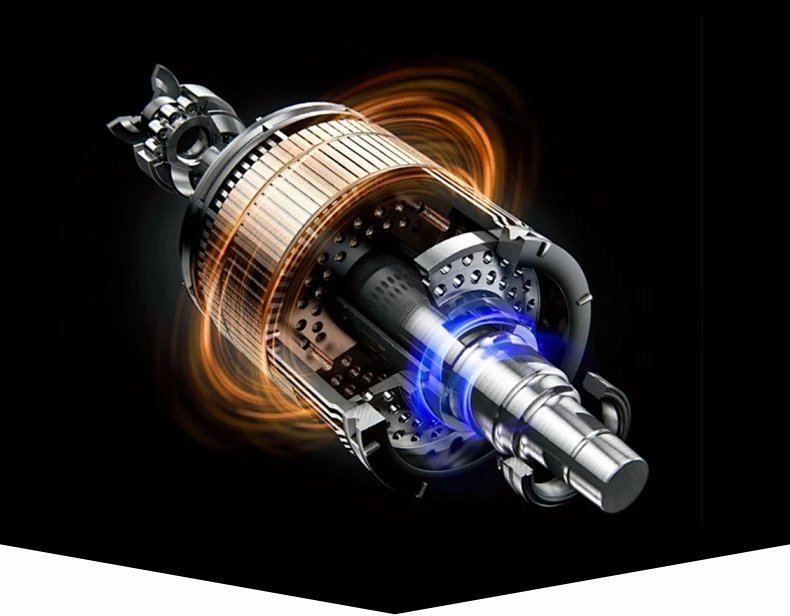

Highly powerful
100% solid copper wire motor rotor, featuring thickened copper core wire for high speed,
high efficiency, powerful performance, and durability.

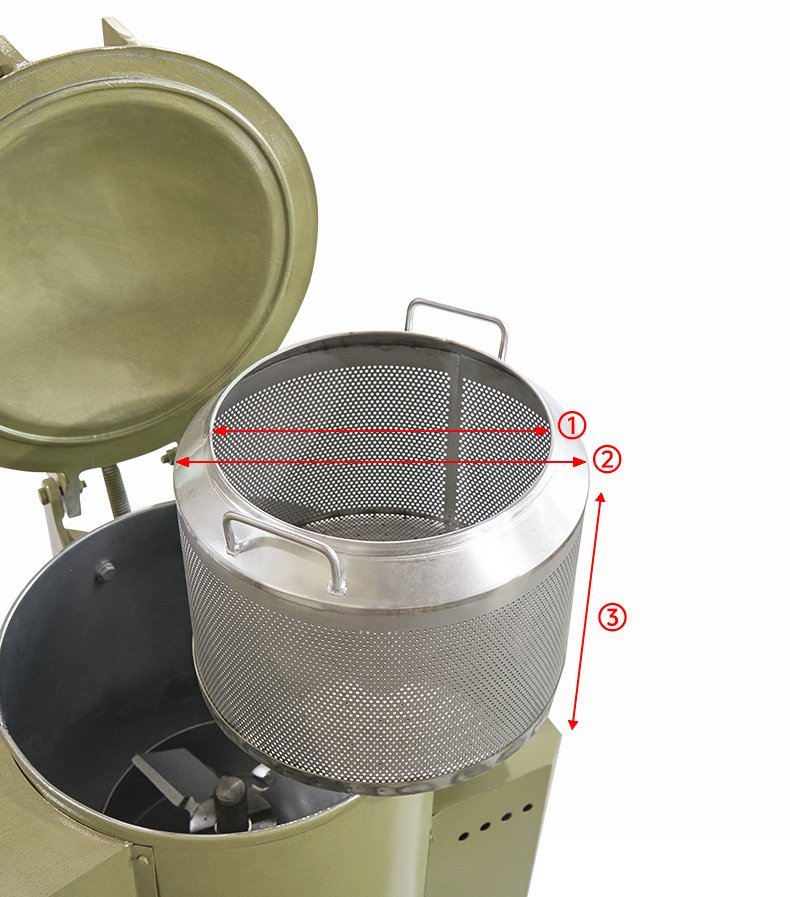

Basket
400B 310 400 300
500 410 500 300

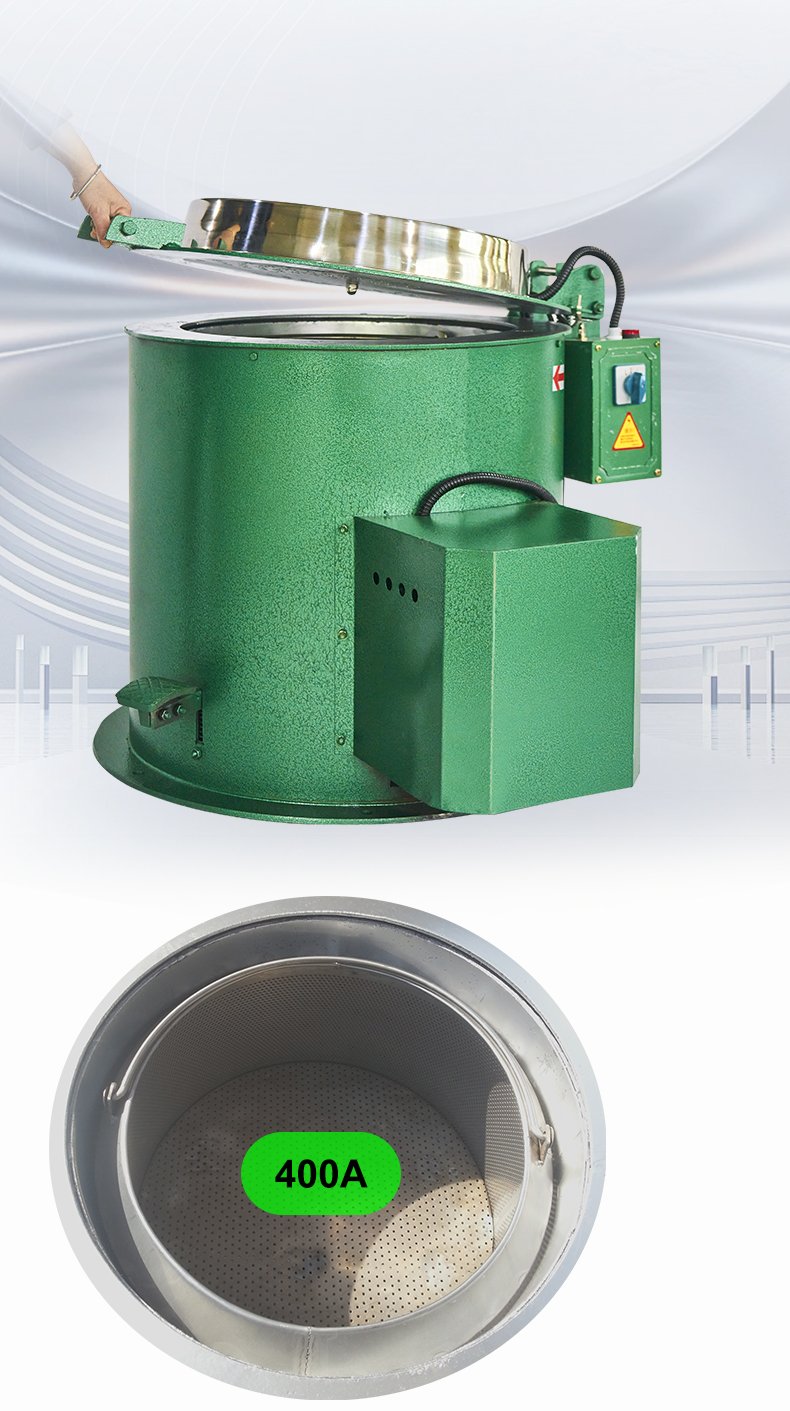

400ABottom of the basket is flat
Recirculating hot air faster spin drying

Dehydration and drying occur simultaneously.
Utilizing physical centrifugal hot-air principles,
it prevents staining or spotting while avoiding oxidation or rust.




Quality highlights reflecting meticulous care

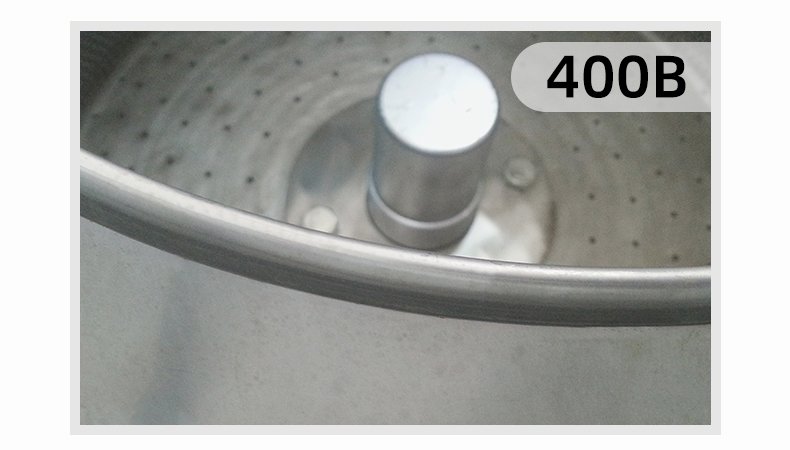

400B Basket’s bottom bulge
During discharge, products are not scratched.
Basket opening features an outward-turned edge design.

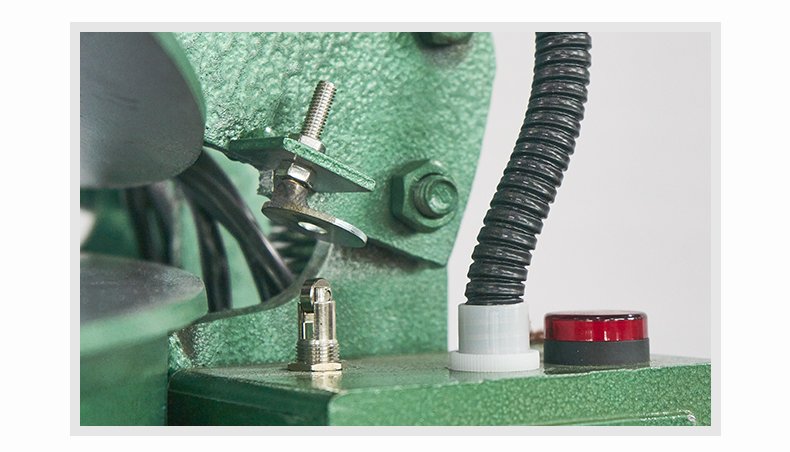

Open lid to stop, Close lid to start
When the cover is opened, the motor stops rotating.
Rotation resumes safely after the cover is closed.

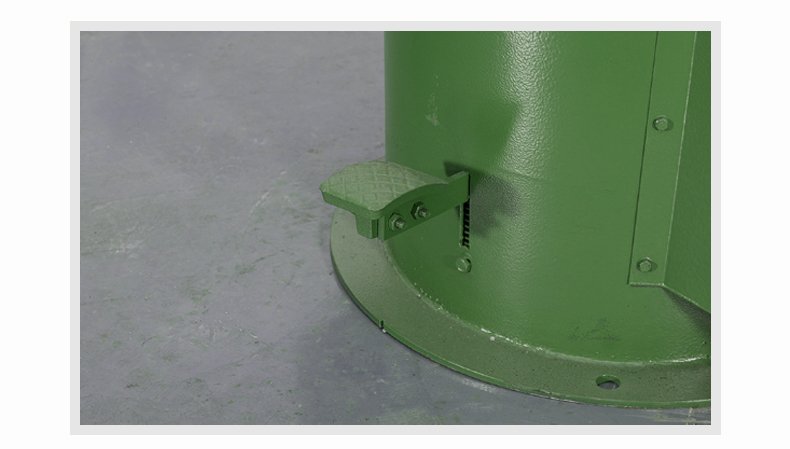

Foot-operated brake
After opening the lid, press the brake pedal to stop the rotation.

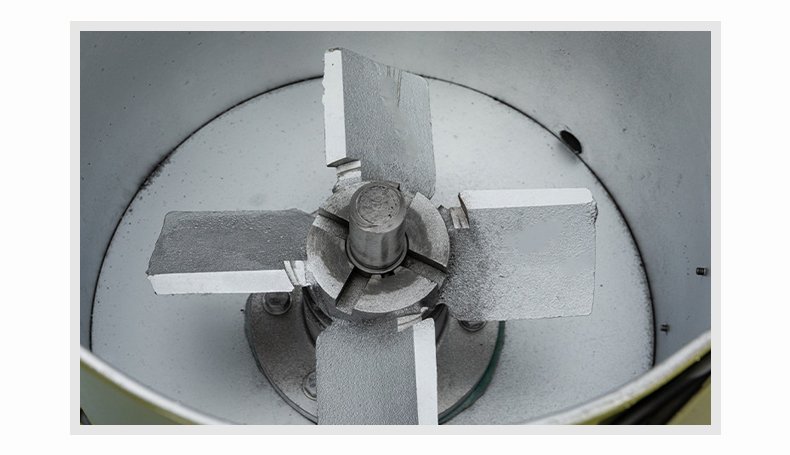

Fan blade
The fan blades are cast as a single piece, ensuring high durability and strength.


Heating function ON/OFF

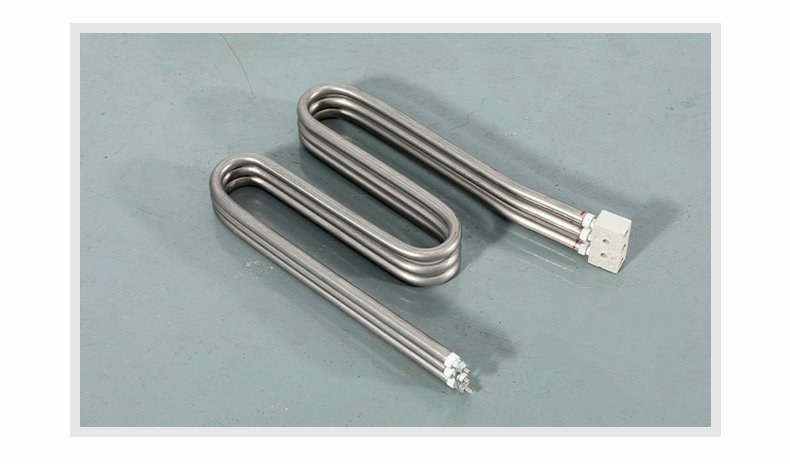

Equipped with W-shaped heating tubes for even heat distribution
