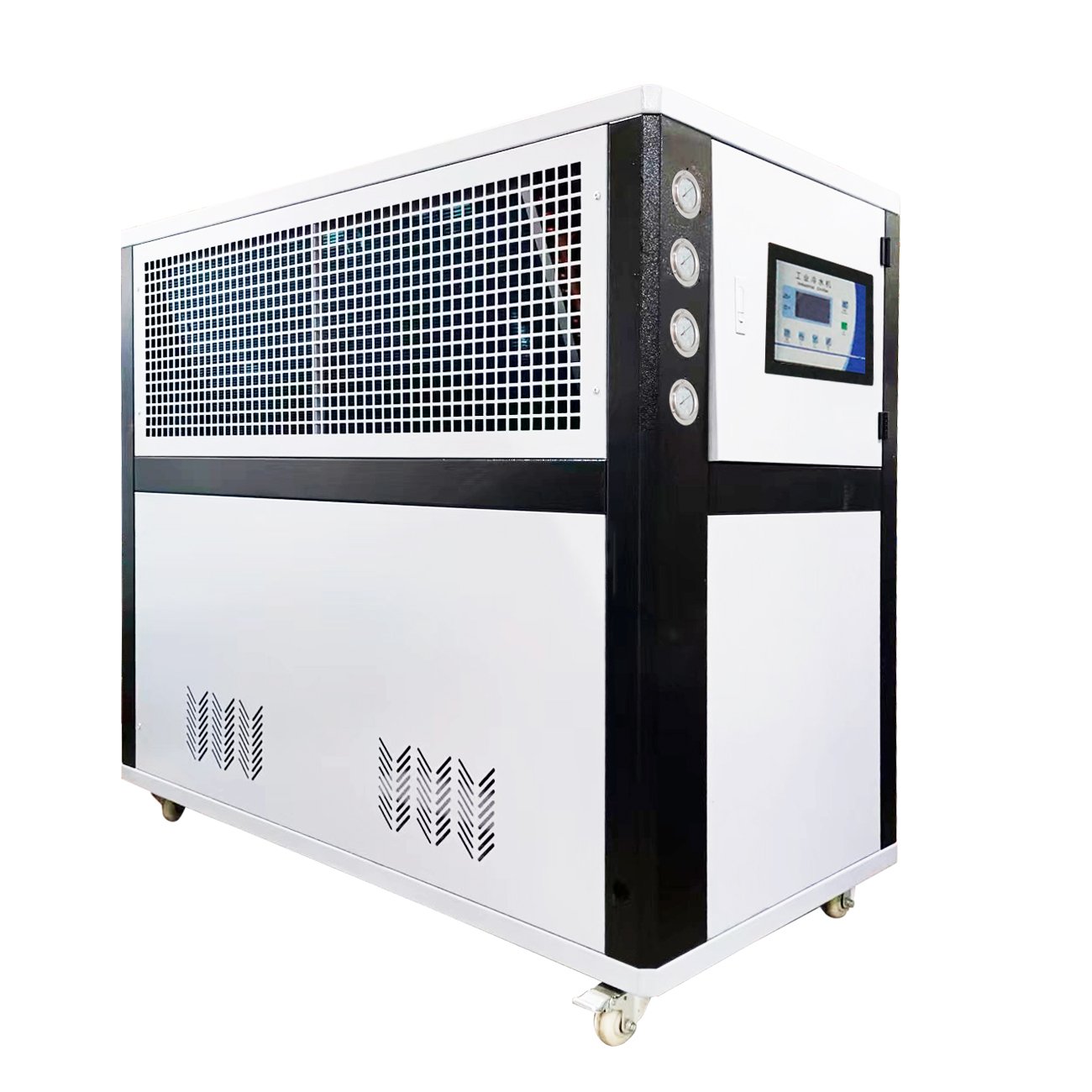

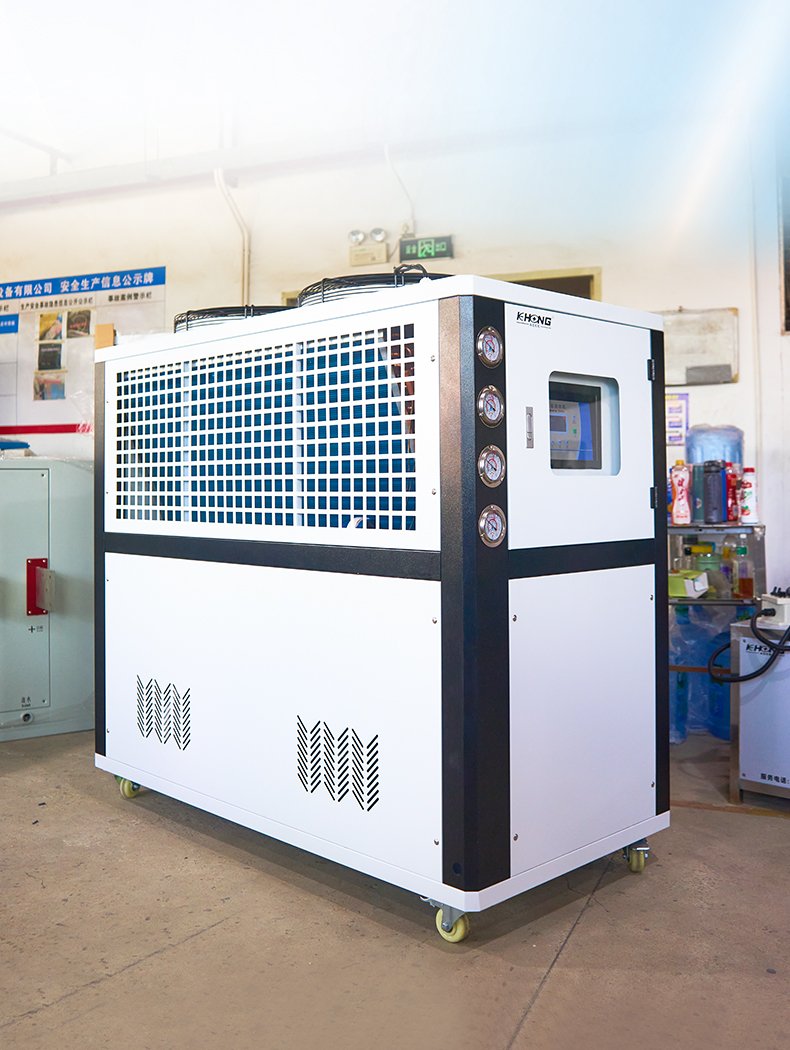

Industrial Chiller
Focus on product stability and reliability
Thick Material | Ample power | Corrosion and oxidation resistance
Customizable for various power models ranging from
1~50HP
Circuit board
Self produced main control circuit board and drive circuit board with split structure;
using high-end components;
The port is connected by a computer cable. Accurate control.
No overstated power, powerful performance
High-quality new scroll compressor quiet operation,
low power consumption energy-efficient, rapid cooling
Large heat exchange area
enabling high refrigeration capacity at low system operating pressure.
High water removal filter
Effectively prevents POE oil degradation and filters impurities
Spray-applied corrosion-resistant epoxy resin paint
Large cross-sectionconductor
Evaporator is resistant to crystallization.
Practical blowdown and drain system makes machine maintenance a breeze.
Excellent performance, strongin the bones
Internal threaded knurled copper tubing Increases heat transfer area
| Traditional copper brazing process Prone to oxidation |
New Copper Brazing Process Oxidation Resistance, Corrosion Resistance, Leak Prevention |
Excellent performance, strongin the bones
| ▲Chiller (Air-cooled direct cooling) layout diagram | |||
| ①Chilled water Inlet | ②Chilled water Outlet | ③Ball valve | ④Ball valve |
| ⑤Circulating pump | ⑥Ball valve | ⑦Bottom valve | ⑧Sinks |
| ▲Chiller (Air-cooled Indirect cooling) layout diagram | |||
| ①Chilled water Inlet | ②Chilled water Outlet | ③Water tank | ④Thermostat |
| ⑤Freezing cycle | ⑥Refrigeration | ||
| ▲Chiller (Air-cooled Built-in water tank) layout diagram | |||
| ①Full water | ②Add water | ③Sewage | ④Cooling water |
| ⑤Cooling water inlet | ⑥Thermostat | ⑦Freezing cycle | ⑧Refrigeration |
Chiller configuration table
| Name | Model Specifications | Quantity |
| Compressor | YH150A1-100 | 1 PCS |
| Input power（3.75KW） | ||
| Vortex | ||
| Evaporator | 316L/Ti shell tube | 1 PC |
| Inlet/Outlet Pipe（φ50） | ||
| Drier filter | EK 084 S | 1 PC |
| Condenser | Shell-and-tube | 1 PC |
| Inlet/Outlet Pipe（φ50） | ||
| Throttling device | Capillary tube | 1 PC |
| Fan | YWF4D-400S | 1 PC |
| Air volume（4546M³/H） | ||
| Input power（0.15KW） | ||
| Water pump(Optional) | 1HP | 1 PC |
| Input power（0.25KW） | ||
| Head （15M） | ||
| Pressure switch | HPL 830E | 1 PC |
| Pressure gauge | YNT60 3.8Mpa | 1 PC |
| Refrigerant pipe | Red Copper | 1 PC |
| Control system | Digital display controller | 1 PC |
| Motherboard | GW532A | 1 PC |
| Contactor | GMC-18A | 2 PCS |
| Thermistor | PT100 | 1 PC |
| Pipe diameter | Unit inlet and outlet | 1 PC |
| Water flow switch | 0023 | 1 PC |
| Thermal insulation | Flame-retardant | 1 PC |
